Stepper Cable Kit

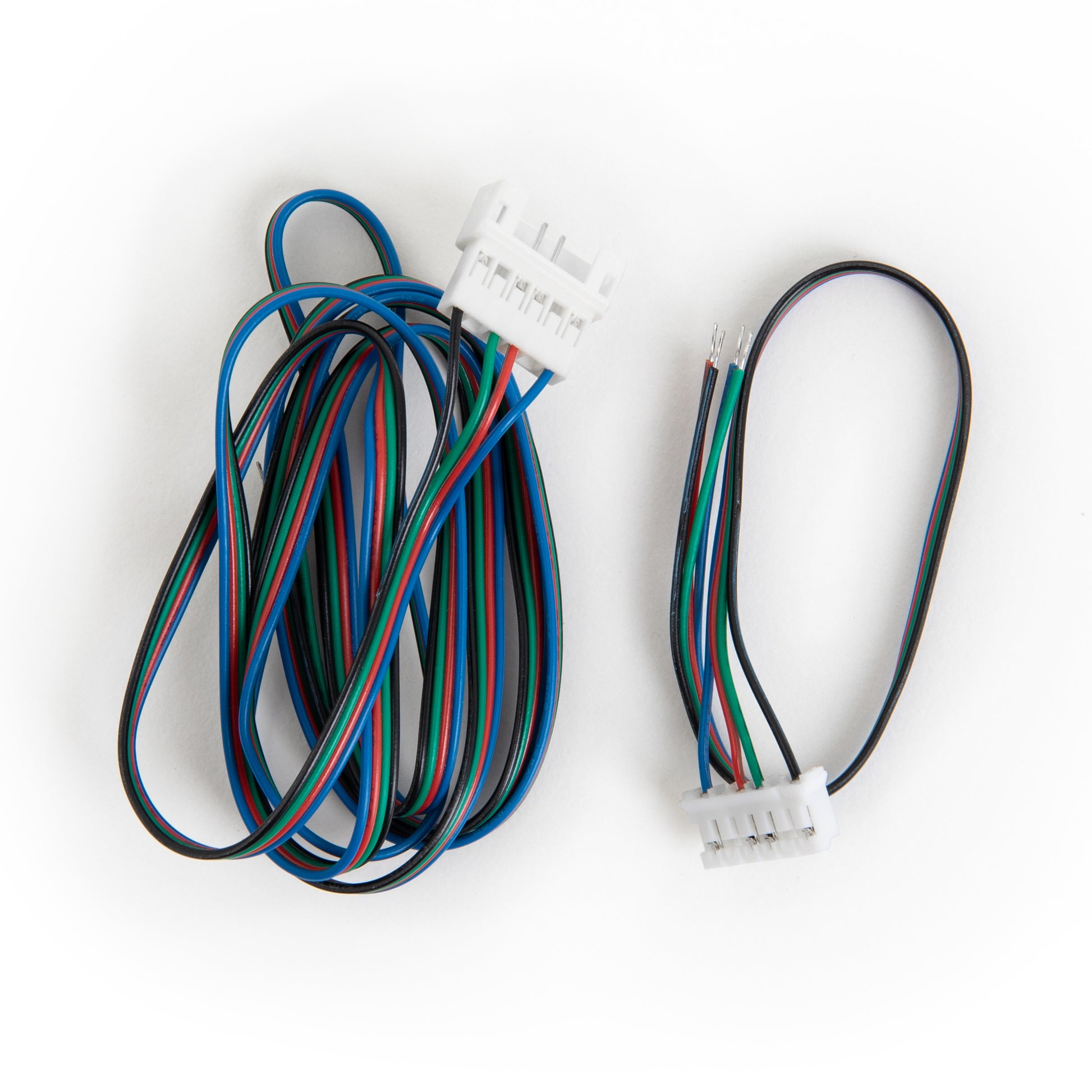

Bowden to Direct Drive Stepper Cable Upgrade Includes:
-One 150mm cable with Plug (or Male) Connector
-One 800mm cable with Jack (or Female) Connector
This kit enables MUTANT owners to add the ability to mount a Direct Drive extruder to a printer that was originally supplied as Bowden Drive Extruder.
Once installed, it allows users to swap back and forth easily. Just remove one connector from the stepper motor on the Bowden extruder and plug that connector into the direct drive on the MUTANT. To switch back, just unplug this connector and plug the original cable back into the stepper motor.
The connectors are for NEMA17 type steppers, JST PH Compatible 6 pin connector with 1.5mm between pins.
