This is how industrial workflows feel—translated to a desktop machine.
PRINT BED ALIGNMENT SYSTEM FOR EUFYMAKE E1
Precision alignment made effortless. Protect your plate from overspray, repeatable alignment, and turn complex jobs simple!
Patent Pending
FEATURES
-
Precision hole grid
Ø5 mm holes spaced 10 mm apart, with each row offset by 5 mm, create consistent reference points across the entire bed.
-

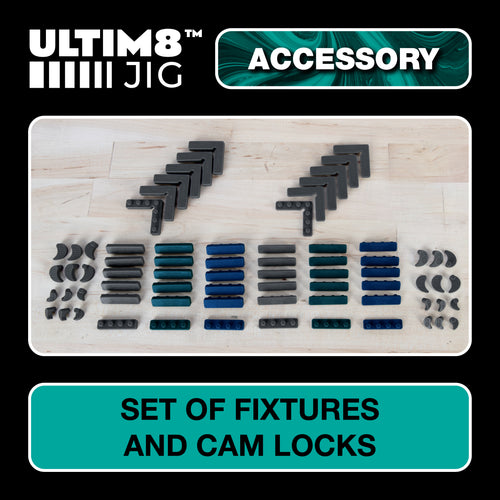

Modular FIXTURES and CAM LOCKS
Secure flat, thin, tall, round, or irregular objects without custom bed-sized jigs.
-
High-grade silicone MATS
Flexible, durable, and resistant to UV overspray—designed to last the life of the machine.
-
Built-in repeatability
Once a setup works, it stays working. Print, remove the part, drop in a new blank, and print again.This is how industrial workflows feel—translated to a desktop machine.
No more replacing Eufy mats. Overspray peels up easily from our high grade silicone MATS and FIXTURES.

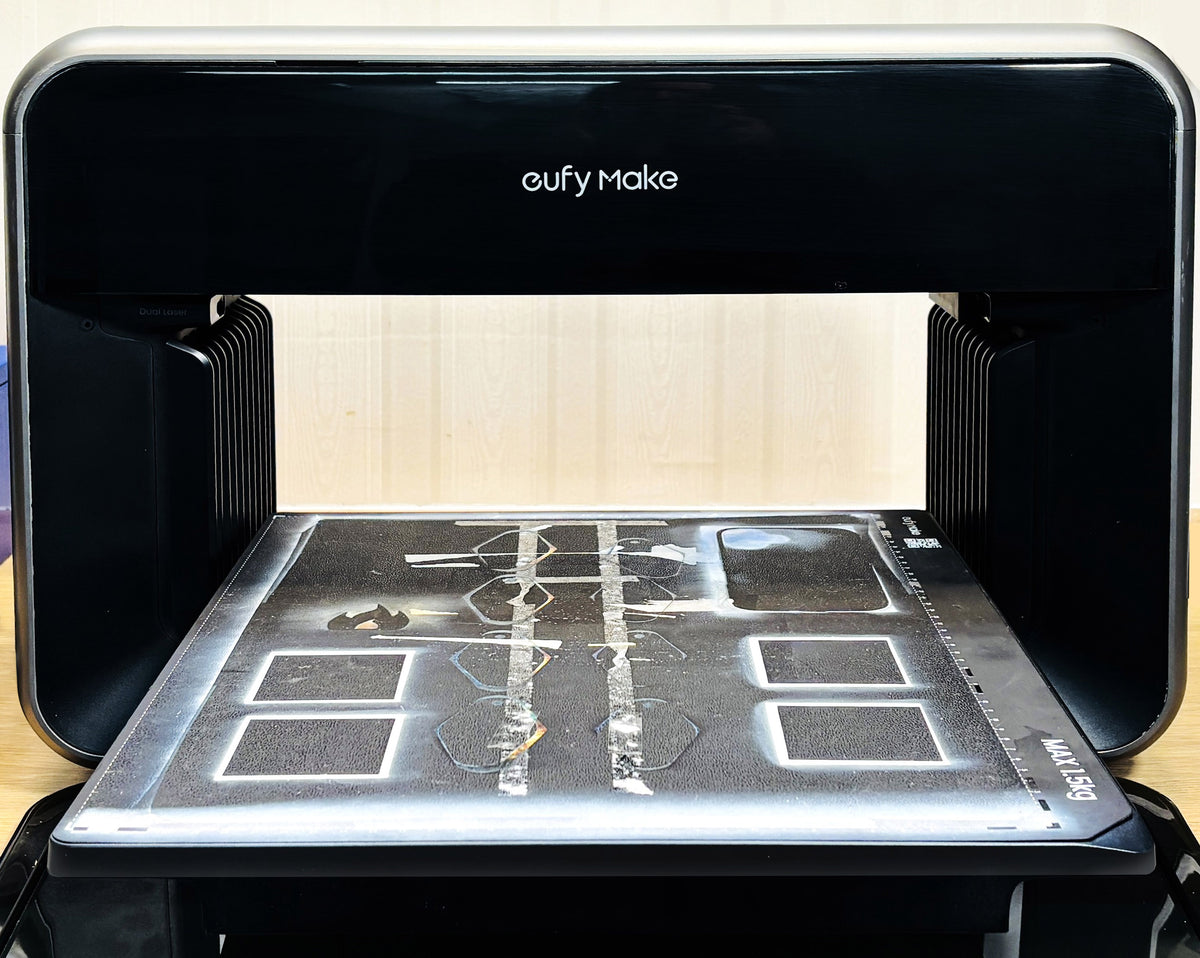

Before
After
PRE-ORDER KIT OPTIONS

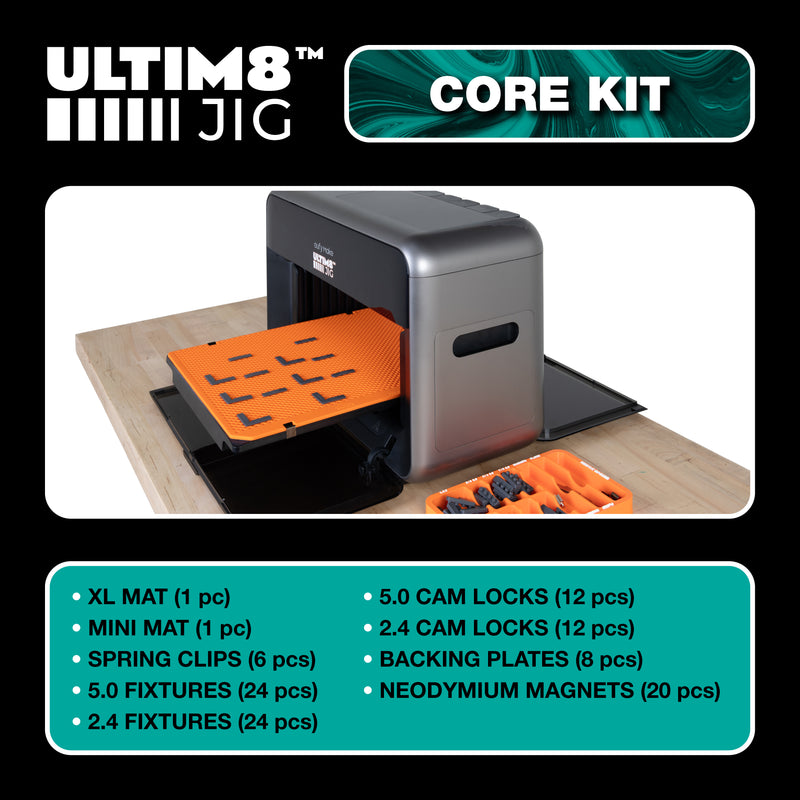

Best for most EufyMake E1 users

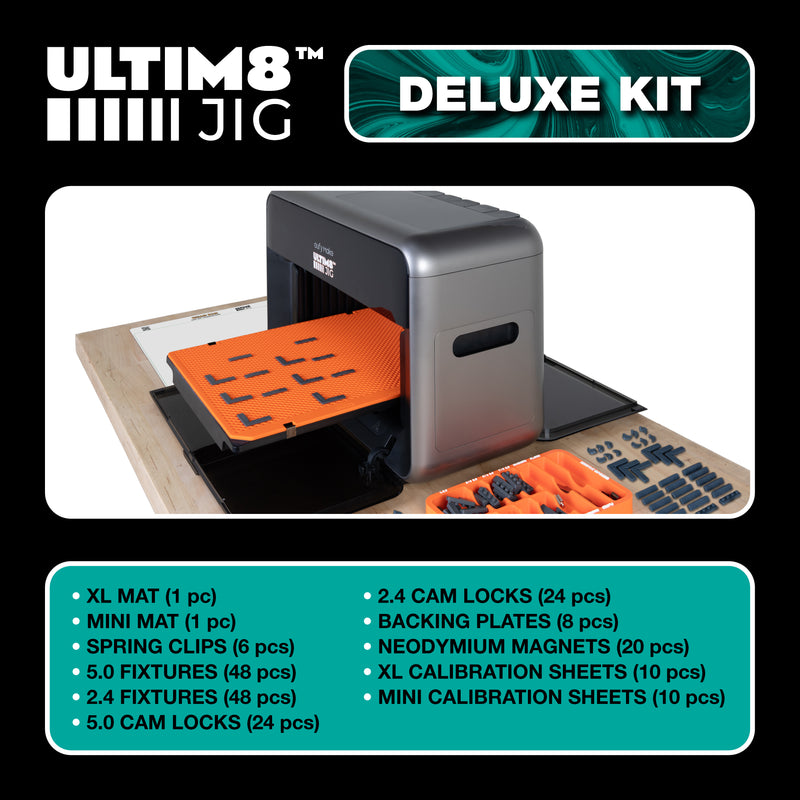

Best for users filling the bed with fixtures and printing many objects at once
PRE-ORDER NOW!
SETUP & INSTALLATION
- Remove your printer bed from the machine.
- Leave or remove the original sticky mat (your choice)

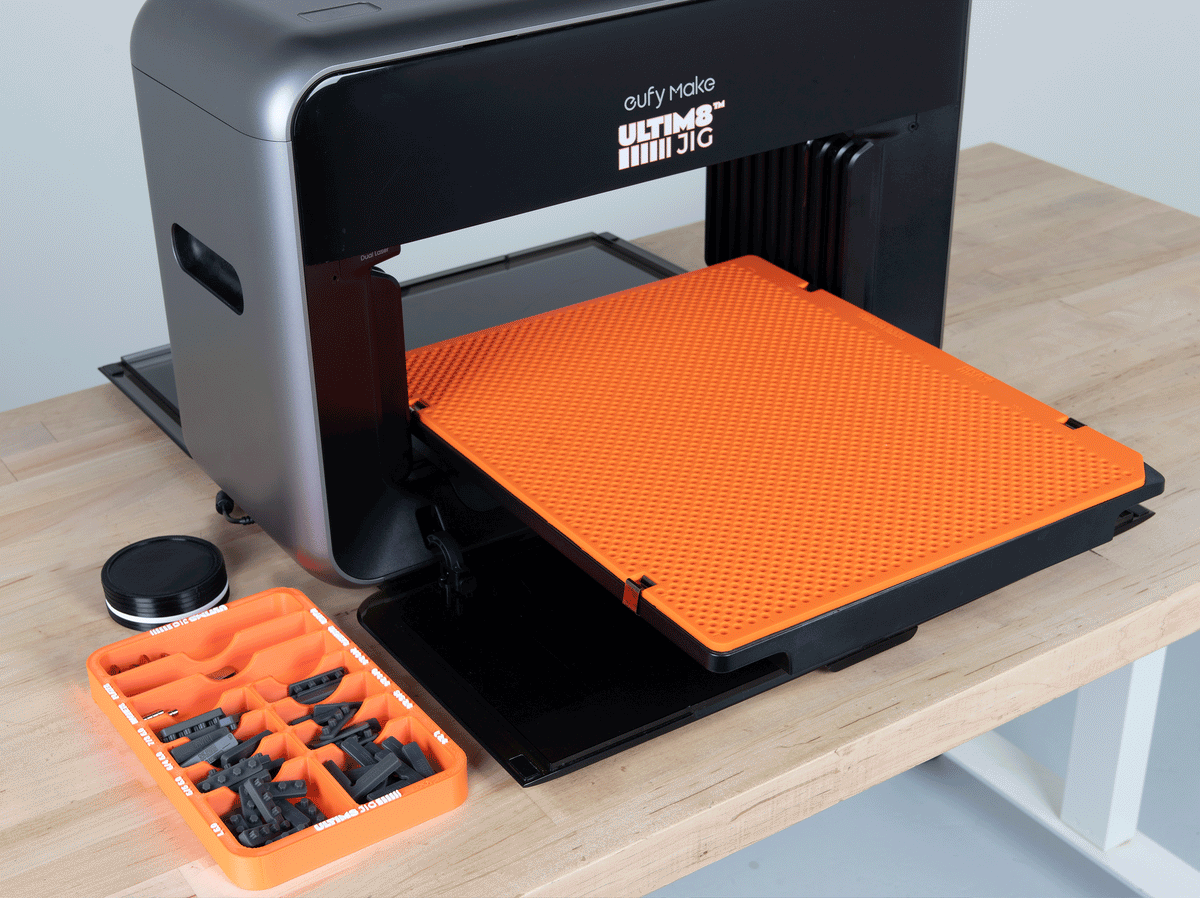

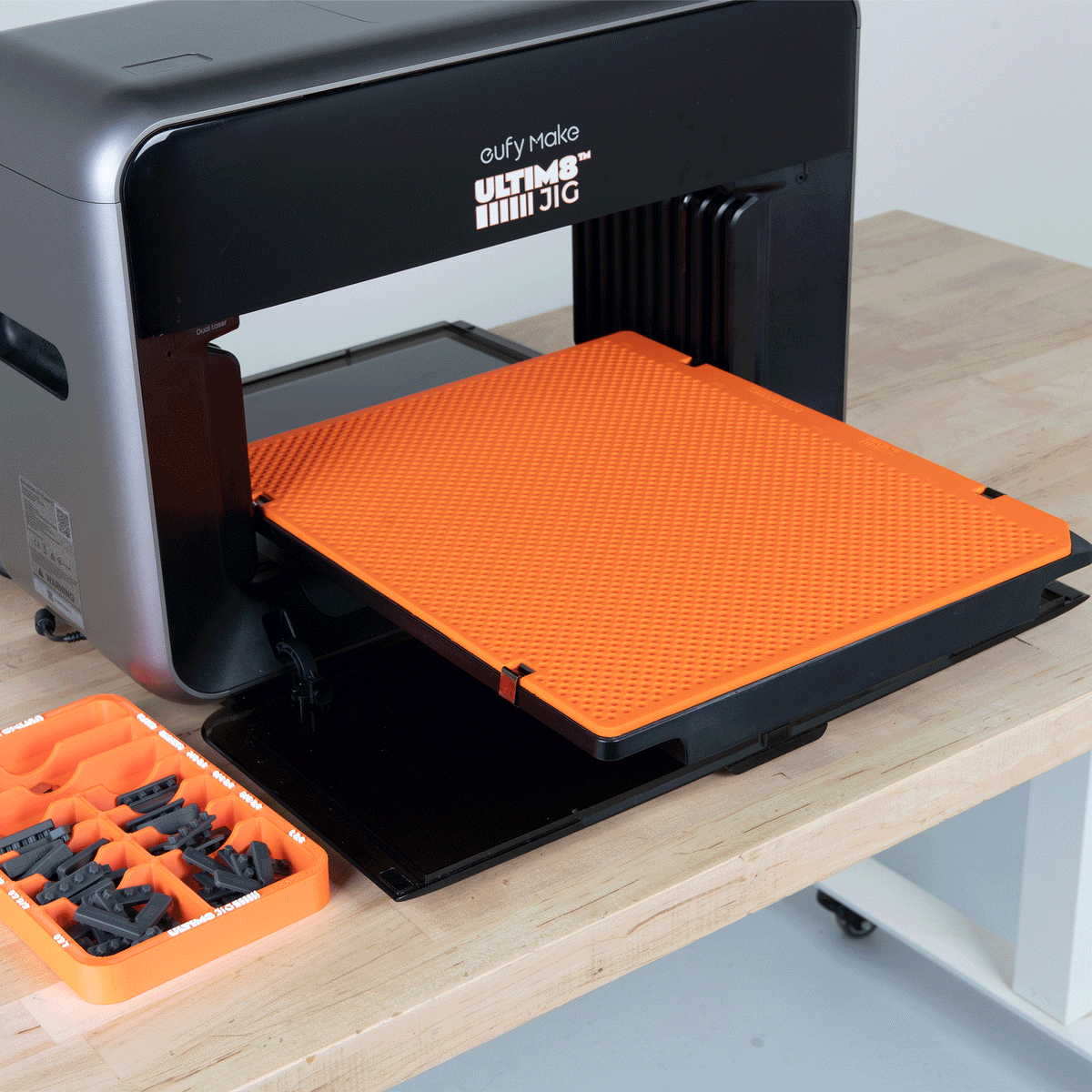

- Place the ULTIM8™ JIG MAT on top and align it
- Secure using the SPRING CLIPS
• Spring Clip Installation Guide
• Spring Clip Installation Video
- Arrange FIXTURES as needed to position your parts
- Use FIXTURES alone or combined with CAM LOCKS
Height Guidelines:
- Ensure parts sit no more than 2 mm below the highest fixture point
- Parts ≥ 1.5 mm → use 2.4 FIXTURES
- Parts > 4 mm → use 5.0 FIXTURES

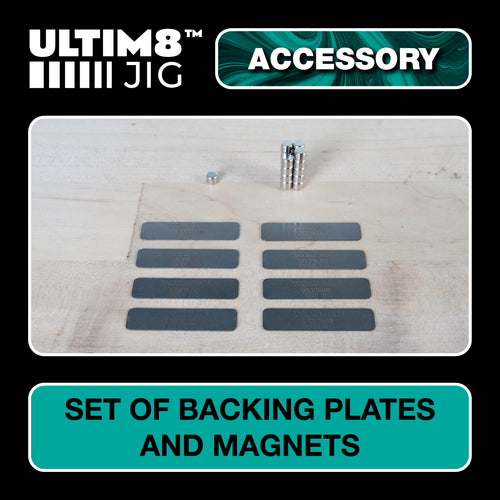

- Parts < 1.5 mm → use BACKING PLATES + MAGNETS
CLEANING & USE

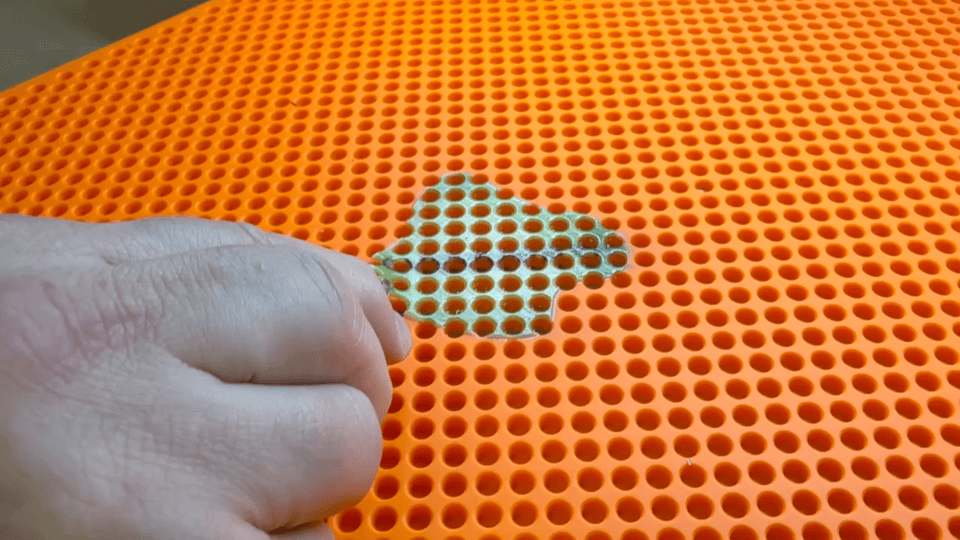

Overspray removes easily:
- Fingernail peel
- Flex the MAT
- Or use packing tape
CALIBRATION
No recalibration required.
- Calibrate normally without the MAT

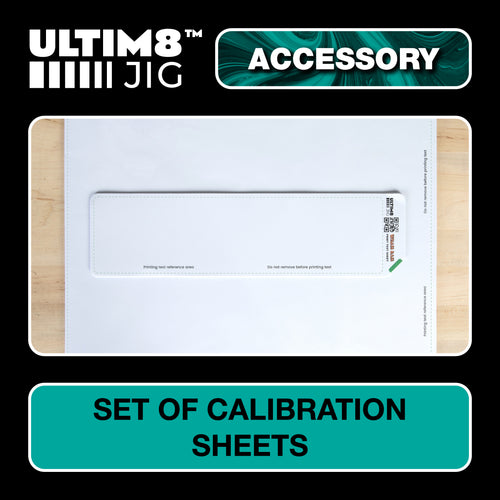

- Optional: run calibration on top using a CALIBRATION SHEET
For Zero Point Calibration:
THE BIRTH OF THE ULTIM8™ JIG
The ULTIM8™ JIG was born from real-world frustration.
After nearly a year of hands-on testing with the EufyMake E1, one of Wham Bam's key collaborators, Jeff Turner repeatedly encountered the same issues: slow setup, inconsistent alignment, and a lack of repeatability that made even simple jobs take longer than they should.
Instead of accepting those limitations, Jeff began sketching solutions—asking how the experience could be easier, more fun, and more productive without compromising precision.
When Jeff shared the concept with Peter, the alignment was immediate. Together, they refined, engineered, tested, and reworked the system until it met Wham Bam’s standards for durability, precision, and real-world usability.
No shortcuts. No compromises. Just a better workflow.
ABOUT JEFF TURNER
Jeff Turner brings together engineering rigor, hands-on testing, and real-world workflow insight.
An engineer with a background in law, Jeff brings together technical depth, structured thinking, and a relentless drive to improve how things work. He is deeply passionate about 3D printing and making, and has spent years beta testing, advising, and collaborating with Wham Bam Systems and other respected companies in the industry.
Jeff’s approach aligns perfectly with Wham Bam’s mission. He focuses on removing friction, simplifying workflows, and making tools that feel intuitive and repeatable. Through his company, Psycho3D, Jeff takes bold ideas and pushes them through real-world testing until they become practical, manufacturable, and reliable products.
Jeff doesn’t design in theory - he designs from experience.
